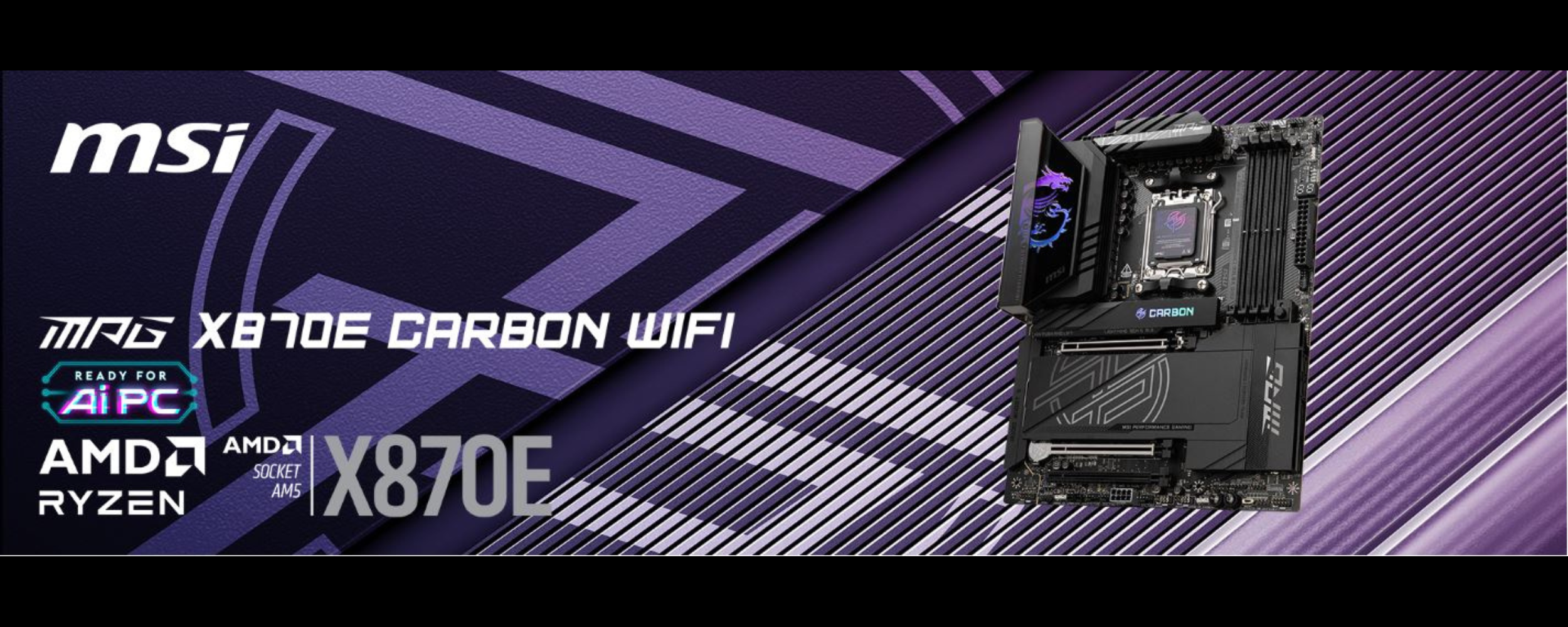

Power your gaming and content creation experiences by including the MSI MPG X870E CARBON WIFI AM5 ATX Motherboard in your computer build. Supporting AMD 7000, 8000, and 9000 series processors with the AM5 socket, this motherboard can be outfitted to smoothly handle demanding applications and AI workloads. Designed to help simplify builds, MSI's EZ technology makes it easy to install up to two M.2 PCIe 5.0 SSDs and two PCIe 4.0 drives to store your games library, applications, and important files. There are also four SATA III connectors available. Four DDR5 DIMM slots are available for up to 256GB of memory, which may be overclocked for higher performance. With two PCIe 5.0 x16 slots and one PCIe 4.0 x16 slot, you can install powerful graphics cards and other compatible expansions. The rear panel features two USB4 ports that can transfer up to 40 Gb/s compatible devices or connect a USB-C compatible 8K display. There are also two USB-C and nine USB-A ports that work with 10 Gb/s devices. An internal header allows you to use a 20 Gb/s USB-C port on the front panel. Built-in Wi-Fi 7 (802.11be) support, along with 2.5 and 5 Gb/s Ethernet ports, provide you with connections to compatible network devices for smooth video streaming and low-latency online games. Windows 11 64-bit is required to take advantage of all the motherboard's features.

ATX Form Factor
AMD X870E Chipset
AM5 Socket
4 x Dual-Channel DDR5 Slots
4 x SATA | 2 x PCIe 5.0 & 2 x PCIe 4.0
2 x PCIe 5.0 x16 | 1 x PCIe 4.0 x16
USB4 | USB 3.2 Gen 1, 2 & 2x2
Wi-Fi 7 | Bluetooth 5.4 | 2.5GbE & 5GbE
Realtek 7.1-Channel Audio
For Windows 11 (64-Bit)

Brand	MSI
Model	MPG X870E CARBON WIFI

Model

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Supported CPU

Chipset	AMD X870E

Chipsets

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: - 1DPC 1R Max speed up to 8400+ MT/s - 1DPC 2R Max speed up to 6400+ MT/s - 2DPC 1R Max speed up to 6400+ MT/s - 2DPC 2R Max speed up to 4800+ MT/s

Memory

PCI Express 5.0 x16	PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16 PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4 * Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors) * Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor) * Supports x4/x0 (For Ryzen 5 8500G processor)
PCI Express x4	PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1
Other Slots	* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.

Expansion Slots

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M) M2_1 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2260/2280 storage devices M2_2 slot (From CPU) - Supports up to PCIe 5.0 x4 - Supports 2260/2280 storage devices M2_3 slot (From Chipset) - Supports up to PCIe 4.0 x4 - Supports 2280/22110 storage devices M2_4 slot (From Chipset - Supports up to PCIe 4.0 x4 - Supports 2260/2280 storage devices * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Storage Devices

Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Onboard Audio

LAN Chipset	Realtek 8126 5Gbps LAN controller
Second LAN Chipset	Realtek 8125 2.5Gbps LAN controller
Max LAN Speed	5Gbps + 2.5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

Onboard LAN

Back I/O Ports

2 x USB 10Gbps Type A (From X870E Chipset)
4 x USB 10Gbps Type A (From RTS5420)
1 x HDMI port
2 x USB 40Gbps Type-C (From CPU/ASM4242)
2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset)
3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset)
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x Smart Button
1 x 5G LAN (RJ45) port
1 x 2.5G LAN (RJ45) port
2 x Wi-Fi Antenna connectors
2 x audio jacks
1 x Optical S/PDIF Out connector

Rear Panel Ports

Other Connectors

AMD X870 Chipset
- 1x USB 3.2 Gen 2x2 20Gbps Type-C connectors Supports up to 27W fast charging
- 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports

Fan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin PUMP_SYS fan connectors
- 5x 4-pin system fan connectors

System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 2-pin Thermal sensor connectors
- 1x EZ Conn-Header V2 (JAF_2)

Jumpers
- 1x Clear CMOS jumper
- 1x OC safe boot jumper

Internal I/O Connectors

Form Factor	ATX
LED Lighting	1 x 4-pin RGB LED connector 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Power Connector (ATX_PER) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR)

Physical Spec

BIOS Feature	1 x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.7 Multi-language
Software	Drivers MSI Center Acrobat Adobe Creative Cloud AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING MSI App Player(BlueStacks) Norton 360 Voicemod

Software Feature

Features

EZ DIY
- Magnetic M.2 Shield Frozr
- EZ M.2 Clip II
- EZ PCIe Release
- Smart Button
- Flash BIOS Button
- Clear CMOS Button
- Pre-installed I/O Shield
- EZ Antenna
- EZ Front Panel Cable
- EZ Conn-Design
- PCI-E Steel Armor II
- EZ Digi-Debug LED
- EZ LED Control (Switch)

Thermal Features
- Heat-pipe Design
- Extended Heatsink Design
- M.2 Shield Frozr
- 7W/mK MOSFET thermal pad
- 5W/mK Extra choke pad
- FAN Headers (CPU*1 + PUMP_SYS*1 + SYSTEM*5)

Performance
- Core Boost
- VRM Power Design (VCore
- M.2 Shield Frozr
- 7W/mK MOSFET thermal pad
- Choke thermal pad
- Fan headers (CPU + PUMP + SYSTEM)

Performance
- Core Boost
- VRM Design
- Dual CPU Power
- Memory Force
- Lightning Gen 5 PCI-E Slot
- Lightning Gen 5 M.2 Slot
- Lightning Gen 4 PCI-E Slot
- Lightning Gen 4 M.2 Slot
- Front USB Type-C
- USB with PD (27W/Front Type-C(
- Supplemental PCIe Power Connector
- Server Grade PCB
- 2oz Copper thickened PCB

Audio
- Audio Boost 5

RGB
- Mystic Light
- Mystic Light Extension (RGB)
- Mystic Light Extension (A-RGB V2)
- Ambient Devices Support

BIOS
- Click BIOS X
- AI Boost
- Performance Preset
